L-KOPIA / LKO Load Measuring System

LD_LOAD_anim

Click to view animation

The L-KOPIA/LKO Clearance Laser Systems and software programs have achieved very significant results in Europe, Canada, USA, Australia and Mexico. The hy-rail or track vehicle system has become the benchmark for measurement of structures clearance, track centers, ballast volume, ballast profile together with track video and GPS location measurement as well.

The missing element has been an assurance that trains are loaded correctly and maintain the required profile or gauge during their journey. At the request of our clients, this well proven clearance measurement system has now been further developed, to monitor load profiles.

The L-KOPIA/LKO Load Measuring System can be specified to varying degrees of sophistication depending on client requirement. It will range from a basic load measurement system, suitable for scanning an oversize or unusual load in a workshop location, through to a full wayside installation.

LD_LOAD_WEB_W_TEXT_01

The first L-KOPIA / LKO Load Measuring System measures electrical components at a major manufacturer’s plant in Mexico. All large transformers (and other components) leaving the plant are scanned as shown in this picture.

Performance

The laser system meets the following operating criteria;

• scanning speed from 9,600 to 43,200 points/sec (up to 20 Hz,)
• general accuracy of 10 mm root mean square on individual points
• high resolution (one point every 0.125 – 0.375 degrees)
• available to scan 360 degrees
• has a measuring range from 0-210 feet (0-70 meter).
• the system is 100% eye safe (Laser Class 1)
• the system is capable of operating in darkness and full daylight.
• the laser unit is light, compact and temperature controlled.
• vehicle speed while scanning – up to 15mph (25kph)

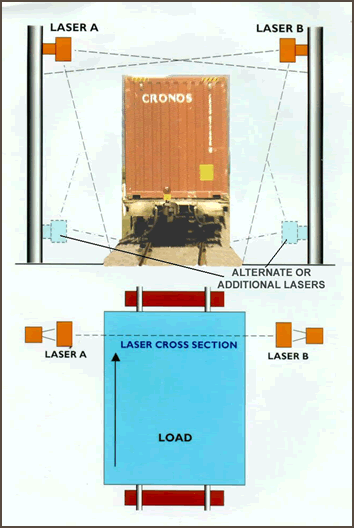

The L-KOPIA/LKO Load Measuring System Principal.

The L-KOPIA/LKO Load Measuring System Principal.

The LD_LOAD screen with laser measured points (red left and blue right) and the Railroad’s maximum dimensions (in red). The cursor X: es are points automatically selected by the L-KOPIA/LKO software.

The LD_LOAD screen with laser measured points (red left and blue right) and the Railroad’s maximum dimensions (in red). The cursor X: es are points automatically selected by the L-KOPIA/LKO software.

The L-KOPIA/LKO software creates a text file following a standard known in USA, Canada and Mexico. We can of course tailor the output to other standards.

The L-KOPIA/LKO software creates a text file following a standard known in USA, Canada and Mexico. We can of course tailor the output to other standards.

Please contact us for more information regarding the L-KOPIA / LKO Load Measuring System
